Polyflex Drive Tools
Polyflex Drive Welder
- Lightweight aluminum joiner
- Portable & compact
- Easy to use
- Available in 400, 650, & 1100 mm
- Can also use Leister welder below
Polyflex Drive Accessories
Polyflex Drive Sprockets, Idlers, Retaining Clips
| Polyflex Drive Accessories | ||||||
|---|---|---|---|---|---|---|
| Item Description | Product | Material | Square Bore (mm/in) | Diameter (mm/in) | # of Teeth | Width (mm/in) |
| PDS-38-95/6 | Sprocket | HDPE | 38 / 1.5 | 95 / 3.74 | 6 | 32 / 1.25 |
| PDI-38-83 | Idler | HDPE | 38 / 1.5 | 83 / 3.27 | — | 32 / 1.25 |
| PDS-38-128/8 | Sprocket | HDPE | 38 / 1.5 | 128 / 5.04 | 8 | 32 / 1.25 |
| PDI-38-116 | Idler | HDPE | 38 / 1.5 | 116 / 4.56 | — | 32 / 1.25 |
| PDS-38-161/10 | Sprocket | HDPE | 38 / 1.5 | 161 / 6.38 | 10 | 32 / 1.25 |
| PDI-38-161 | Idler | HDPE | 38 / 1.5 | 149 / 5.86 | — | 32 / 1.25 |
| PDS-38-193/12 | Sprocket | HDPE | 38 / 1.5 | 193 / 7.60 | 12 | 32 / 1.25 |
| PDI-38-181 | Idler | HDPE | 38 / 1.5 | 181 / 7.12 | — | 32 / 1.25 |
| PDC-38 | Retaining Clip | — | 38 / 1.5 | — | — | — |

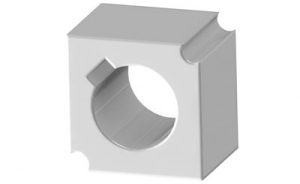

Adapters are available for mounting square bore sprockets on round shafts
Polyflex Drive PU Scrapers
PU Scraper Components
- Torsion system – Enables PU scraper to apply constant pressure
- Support tube with PU scraper – molded PU scraper provides maximum hygiene and superior wear characteristics
- Lifting lever – Allows you to quickly adjust the position of the scraper
- Clamping cone – expands inside the support tube as device is tightened
Polyflex Tools
Polyflex Pneumatic Joiner
- Lightweight aluminum joiner
- Portable & compact
- Easy to use
- Available in 15", 24", 36", & 48"
- Can also use Polyflex Drive welder
Leister Kit
Includes: Hot Air Gun 7mm & 9mm Nozzle Spatula (knife to trim weld)
- Variable temperature adjustment
- Adjustable air flow
- 110 Volt

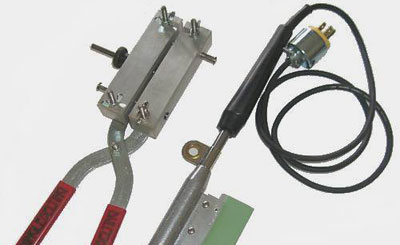

Hand Joiner and Heat Tool
For belting up to 4"
- Join narrow width Polyflex belting
- Makes easy, quick, strong belt weld
- 110 Volt Heat Tool
Rounthane/Veethane Tools
Rounthane Joiner (Model 75), 110 Volt
Use for belt diameters from 1/8" through 1/2" (Model 100 for 9/16", 5/8" & 3/4")
Includes:
- Pliers
- #90-1 Handle & Heat Iron 110 Volt
- #90-3 Paddle
Veethane Joiner (Model 85), 110 Volt
For use with 3L through C Sections
Includes:
- Pliers
- #90-1 Handle & Heat Iron 110 Volt
- #90-3 Paddle

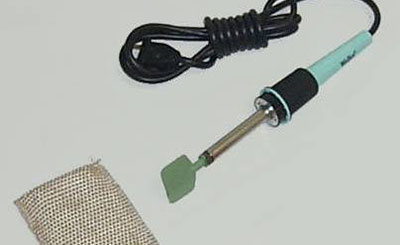

Heat Iron Complete (Model 90), 110 Volt
Includes:
- #90-1 Handle & Heat Iron 110 Volt
- #90-2 Paddle
Reinforced Belting Tools
Polyester Cord Can Cable Joiner Kit
Includes:
- Heat Unit with Stem Thermometer
- 3/8" Mold with Wing Nuts
- Dry Film Mold Release
- #90 Heat Iron with Tip, Paddle and Cover
- Tip with Paddle
- 90° Cutter
- 12 Sleeves
- Water Trough
- Instructions
- Tool Box
Steel Cord Can Cable Joiner Kit
Includes:
- Heat Unit with Stem Thermometer
- 3/8" Mold with Wing Nuts
- Dry Film Mold Release
- Cable Cutter
- 90° Cutter
- Crimping Tool
- 12 Sleeves
- 25 Crimps
- Water Trough
- Instructions
- Tool Box

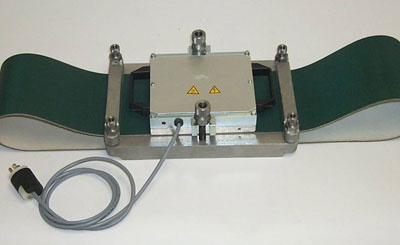

Portable Nycor Presses
Model GK-6 for belting up to 6" wide
Model GK-8 for belting up to 8" wide
- Lightweight cast aluminum construction
- Hold-down clamps make it easy to position belting in press
- Electrically heated top platen (115 VAC/DC)
- An additional cold top platen to speed splice cooling
Model HP32 Hand Press for belting up to 3" wide, 7/64" thick
Model HP100 Hand Press for belting up to 4" wide, 7/64" thick
- Lightweight and portable
- Adjustable air flow
- 110 Volt belt
Nycor Skivers

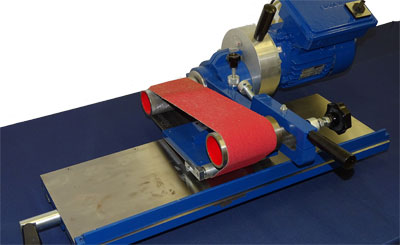

Model S250 (old B250) for belting up to 25" wide
- Motorized
- Adjustable for varying lap lengths
- Sanding belt easily replaced
- Can be modified for belt widths beyond 25"
- Moveable bed/stationary sander
Model B60 for belting up to 6" wide and 1/4" thick (B60 skiver shown)
- Available with or without motor and drive
- Lightweight and portable
- Automatic setting for belt taper
- Abrasive Paper easily replaced
